API 5L, or the American Petroleum Institute Specification 5L, is a widely recognized standard for steel line pipes used in the transportation of oil, natural gas, and other hydrocarbon products. The specification sets the requirements for the manufacture of seamless and welded steel pipes suitable for various applications in the energy industry. API 5L line pipes are essential for the construction and operation of pipelines that transport these valuable resources.
Specification of Api 5l line pipe:
| Product | Line Pipe, API Line Pipe, Seamless Line Pipe, Carbon Steel Line Pipe |
| Application | For Transportation in petroleum and natural gas industries |
| Pipe Standard | API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70 |
| API 5L PSL1/PSL2 L210,L245,L290,L320,L360,L390,L415,L450,L485 | |
| Size | OD: 73-630mm |
| WT: 6-35mm | |
| LENGTH: 5.8/6/11.8/12m |
Manufacturing Methods:
API 5L line pipes can be manufactured using two primary methods:
Seamless: These pipes are produced by piercing a solid steel billet and then rolling it to form a seamless tube. Seamless pipes are known for their uniformity, strength, and suitability for high-pressure and critical applications.
Steel Grade: B, X42, X52, X60, X65, X70
Dimension: 1″/2″ – 24″
Process:hot rolling, hot expanding
Welded: Welded pipes are made by joining steel plates or coils through welding. They are available in various forms, including longitudinal (LSAW), helical (HSAW), and electric resistance welded (ERW). Welded pipes are suitable for less critical applications and are often more cost-effective.
Steel Grade: B, X42, X52, X60, X65, X70, X80
Dimension: 2″ – 30″
Process: ERW, SSAW, LSAW, HFW, JCOE.
Grades:
API 5L categorizes line pipe steel into different grades, each identified by a letter followed by a two- or three-digit number. The grades indicate the steel’s minimum yield strength and other mechanical properties. Some common grades include:

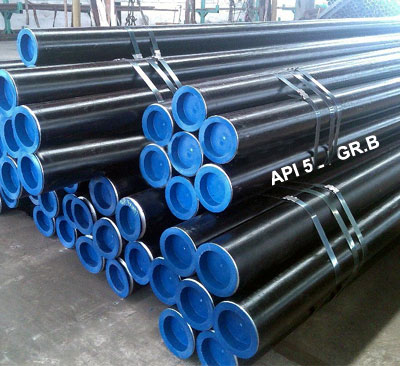

API 5L Grade B: The most commonly used grade for oil and gas pipelines.
API 5L X52, X60, X65, and X70: Higher-strength grades suitable for more demanding applications.
| API 5L PIPE PSL1 Chemical and Mechanical Properties | |||||||||
| API 5L PIPE PSL1 | Chemical Composition | Mechanical Property | |||||||
| C (Max) | Mn (Max) | P (Max) | S (Max) | TENSILE ( Min ) | YIELD ( Min ) | ||||
| Psi X 1000 | Mpa | Psi X 1000 | Mpa | ||||||
| Grade A25 | CL I | 0.21 | 0.60 | 0.030 | 0.030 | 45 | 310 | 25 | 172 |
| CL II | 0.21 | 0.60 | 0.030 | 0.030 | |||||
| Grade A | 0.22 | 0.90 | 0.030 | 0.030 | 48 | 331 | 30 | 207 | |
| Grade B | 0.26 | 1.20 | 0.030 | 0.030 | 60 | 414 | 35 | 241 | |
| Grade X42 | 0.26 | 1.30 | 0.030 | 0.030 | 60 | 414 | 42 | 290 | |
| Grade X46 | 0.26 | 1.40 | 0.030 | 0.030 | 63 | 434 | 46 | 317 | |
| Grade X52 | 0.26 | 1.40 | 0.030 | 0.030 | 66 | 455 | 52 | 359 | |
| Grade X56 | 0.26 | 1.40 | 0.030 | 0.030 | 71 | 490 | 56 | 386 | |
| Grade X60 | 0.26 | 1.40 | 0.030 | 0.030 | 75 | 517 | 60 | 414 | |
| Grade X65 | 0.26 | 1.45 | 0.030 | 0.030 | 77 | 531 | 65 | 448 | |
| Grade X70 | 0.26 | 1.65 | 0.030 | 0.030 | 82 | 565 | 70 | 483 | |
API 5L PIPE PSL2 Chemical And Mechanical Properties
| API 5L PIPE PSL2 Chemical And Mechanical Properties | ||||||||||||
| API 5L PIPE PSL2 | Chemical Composition | Mechanical Property | ||||||||||
| C | Mn | P | S | Tensile | Yield | C. E. IMPACT ENERGY | ||||||
| (Max) | (Max) | (Max) | (Max) | Psi x 1000 | Mpa | Psi x 1000 | Mpa | PCM | IIW | J | FT/LB | |
| Grade B | 0.22 | 1.2 | 0.025 | 0.015 | 60 – 110 | 414 – 758 | 35 – 65 | 241 – 448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| Grade X42 | 0.22 | 1.3 | 0.025 | 0.015 | 60 – 110 | 414 – 758 | 42 – 72 | 290 – 496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| Grade X46 | 0.22 | 1.4 | 0.025 | 0.015 | 63 – 110 | 434 – 758 | 46 – 76 | 317 – 524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| Grade X52 | 0.22 | 1.4 | 0.025 | 0.015 | 66 – 110 | 455 – 758 | 52 – 77 | 359 – 531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| Grade X56 | 0.22 | 1.4 | 0.025 | 0.015 | 71 – 110 | 490 – 758 | 56 – 79 | 386 – 544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| Grade X60 | 0.22 | 1.4 | 0.025 | 0.015 | 75 – 110 | 517 – 758 | 60 – 82 | 414 – 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| Grade X65 | 0.22 | 1.45 | 0.025 | 0.015 | 77 – 110 | 531 – 758 | 65 – 82 | 448 – 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| Grade X70 | 0.22 | 1.65 | 0.025 | 0.015 | 82 – 110 | 565 – 758 | 70 – 82 | 483 – 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| Grade X80 | 0.22 | 1.9 | 0.025 | 0.015 | 90 – 120 | 621 – 827 | 80 – 102 | 552 – 705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
Applications of Api 5l line pipe:
API 5L line pipes are primarily used for the transportation of oil and natural gas. They play a crucial role in the construction and operation of pipelines in the energy industry, including:
Gathering lines
Transmission pipelines
Distribution networks
Offshore platforms
We have engaged in the steel pipe industry for 30years with rich exprience and strong strengths. Contact us to get a quote!
